JAMESTOWN
Flat Panel Door Style | Group 5
Construction: Standard Miter: 3″ Frame; P204 3/8″ solid wood center panel; Edge Profile MR375. Manor drawer front frame is 2″.

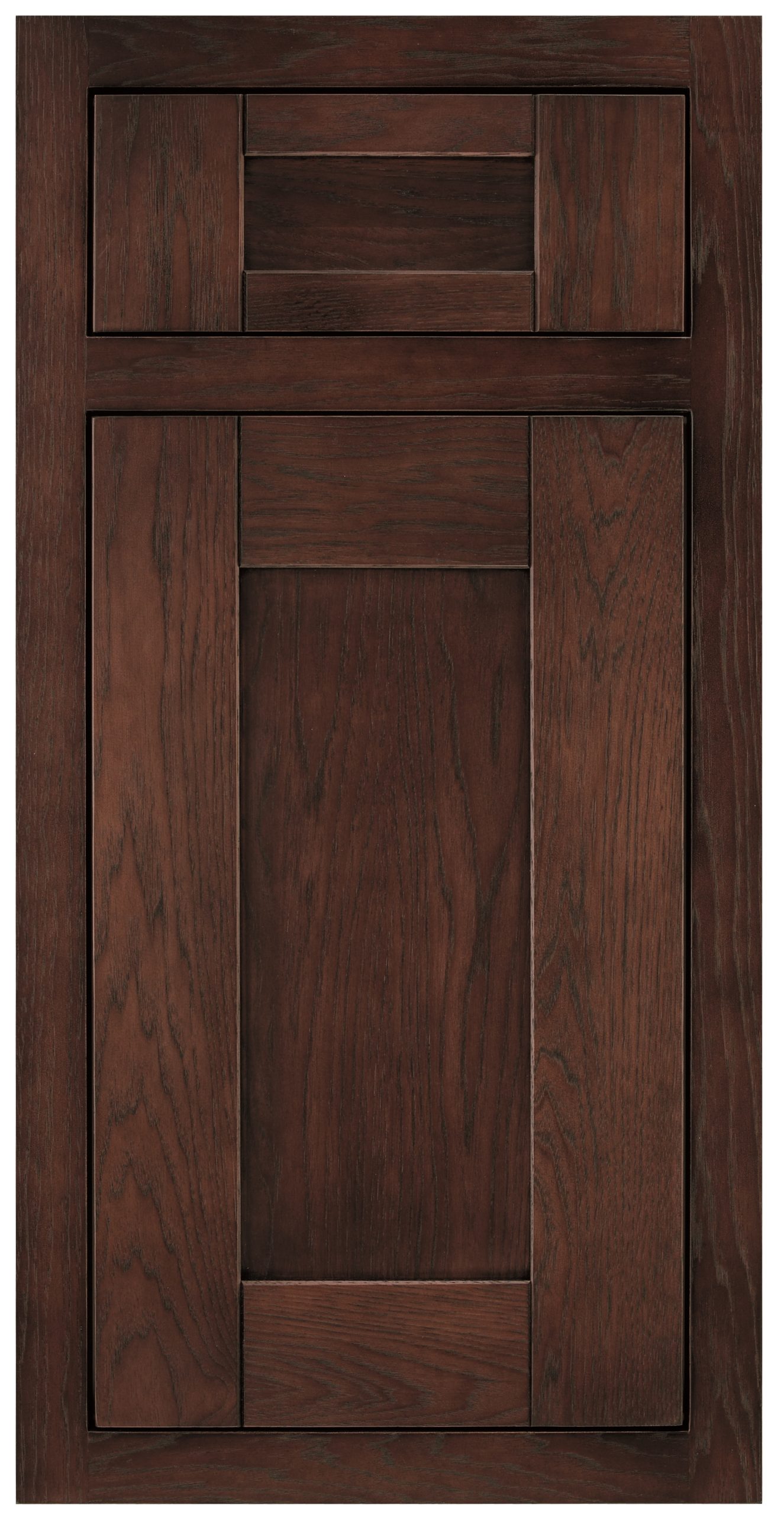

Featured in Cherry: Driftwood Finish
Select the image link to view materials in our stock finishes
WOODS + MATERIALS
Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. Seville’s finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Your choices, your lifestyle.
Related Door Styles
Beauty is in the details...
Size Limitations:
Jamestown Door:
Width: Min: 8-7/8" Max: 24"
Height: Min: 8-7/8" Max: 62"
Jamestown doors are not available below the minimum width/height sizes. Doors requested above the Max size (or without a mid rail) may be allowed at Seville Cabinetry’s discretion but will not be covered under the Warranty.
Doors below the minimum sizes will automatically default to a different style:
Jamestown doors default to Classic (Slab)
Optional Drawer Fronts:
Manor Drawer Front:
Width: Min: 5" Max: 42"
Height: Min: 5" Max: 15"
Drawer fronts below the minimum sizes will automatically default to a different style.
Manor fronts default to Slab.
Hinging applies to the traditional framed construction of Seville.
- Standard Overlay - Yes
- Modified Overlay - Yes
- Partial Full Overlay - Yes
- Full Overlay - Yes
- Flush Inset - No
- Beaded Inset - No
Available in Lucerne Frameless Construction
Jamestown Inside Edge Profile Standard: MR375
Optional Inside Edge Profile: NA
Jamestown Outside Edge Profile Standard: MR375
Optional Outside Edge Profile: NA
Panel Standard: P204 Panel
Optional Panel: NA
- Decorator Ends - Yes
- Integral Ends - No
- Wainscot Panel - No
