Construction: Mortise & Tenon: 1-1/4” frame; 5/8” reeded solid center panel; Inside edge: SR331RP; Outside Edge: E104
Featured Finish: Maple, Classic Grey.
Select the image link to view materials in our stock finishes
Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. Seville’s finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Your choices, your lifestyle.
Size Limitations:

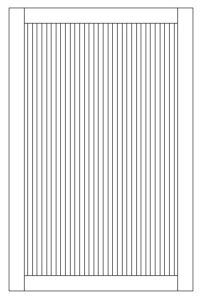

Newport Door:
Width: Min: 7-7/8" Max: 24"
Height: Min: 5-1/2" Max: 48" (62" maximum with mid rail / 2 panels)
Newport doors are not available below the minimum width/height sizes. Doors requested above the Max size (or without a mid rail) may be allowed at Seville Cabinetry’s discretion but will not be covered under the Warranty.
Doors below the minimum sizes will automatically default to a different style:
Newport doors default to Classic (slab).
Optional Drawer Front:
Manor Drawer Front:
Width: Min: 7-7/8" Max: 42"
Height: Min: 4-1/2" Max: 15"
Hinging applies to the traditional framed construction of Seville.
Newport Inside Edge Profile Standard: SR331RP
Newport Outside Edge Profile Standard: E104

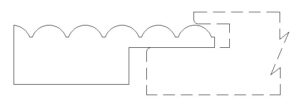

Panel Standard: Reeded
Optional Panel: NA
Glass Doors NOT Available.
