Construction:

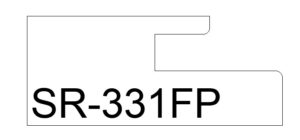

Mortise & Tenon: 1-1/4” frame; ¼” center panel; Inside edge:
SR331FP; Outside Edge: E104
Featured Paint Grade Stormy Blue.
Select the image link to view materials in our stock finishes
Disclaimer: Please be aware that the accuracy of color shown on your computer screen will vary based on your monitor and screen resolution. Colors are also impacted by variations in the characteristics inherent to the specie. Finish selections should always be made after sourcing door and/or finish samples. Seville’s finish program is here to help personalize your selection to achieve the desired performance and look of your cabinetry. Your choices, your lifestyle.
Size Limitations:
Solana Door:
Width: Min: 5-1/2" Max: 24"
Height: Min: 5-1/2" Max: 48" (62" maximum with mid rail / 2 panels)
Solana doors are not available below the minimum width/height sizes. Doors requested above the Max size (or without a mid rail) may be allowed at Seville Cabinetry’s discretion but will not be covered under the Warranty.
Doors below the minimum sizes will automatically defaut to a different style:
Solana doors default to Classic (Slab)
Optional Drawer Fronts:
Select Drawer Front:
Width: Min: 4-1/2" Max: 42"
Height: Min: 4-1/2" Max: 15"
Manor Drawer Front:
Width: Min: 4-1/2" Max: 42"
Height: Min: 4-1/2" Max: 15"
Drawer fronts below the minimum sizes will automatically default to a different style.
Manor fronts default to Slab.
Optional Drawer Fronts:
Select Drawer Front:
Width: Min: 4-1/2" Max: 42"
Height: Min: 4-1/2" Max: 15"
Manor Drawer Front:
Width: Min: 4-1/2" Max: 42"
Height: Min: 4-1/2" Max: 15"
Drawer fronts below the minimum sizes will automatically default to a different style.
Manor fronts default to Slab.
Hinging applies to the traditional framed construction of Seville.
Available in Lucerne Frameless Construction
Solana Inside Edge Profile Standard: MR10
Optional Inside Edge Profiles:
 |  |  |  |
|  |  |  |
* Mullions Integrated except MR50
Solana Outside Edge Profile Standard: E105
Optional Outside Edge Profiles:
 |  |  |  |  |
 |  |  |  |  |
 |  |  |  |  |
 |  |  |  |
Panel Standard: 1/4" Panel
Optional Panel: NA
